All About HAPPY's popular 12-Needle Touch Screen

Home/Office Single-Head Embroidery Machine

Voyager is HAPPY's best-selling single-head embroidery machine ever, and no wonder: Voyager's unique combination of sewing power, quality, and user-friendliness is unmatched by any other compact multi-needle embroidery machine on the market.

Voyager 2 Key Features

Intuitive color touch screen: on-board help, auto error correction
12" x 12" hoop - large sewing field
1,000 stitches per minute speed
Compact, quiet: small, stable 11"x 17" base, quiet, smooth operation.
USB flash drive port accepts various brands, sizes of USB flash memory sticks
Built-in networking - control multiple Happy machines from 1 PC
Compatible with commercial clamps and hoops - great flexibility

CONTACT NEAREST DEALER

DOWNLOAD A BROCHURE

Gallery and Links
Wide cap field - embroider the front and sides in one hooping!	Intuitive color touch screen shows key sewing information at all times!	Compact design, yet big sewing power - runs true production!
New 1-Point Frame for tight spots like cuffs and pockets	Customize your work screen! Like a smartphone or tablet.

Technical Highlights
Flash Memory: Accepts USB thumb drives of various sizes/brands.	Bobbin Winder: Wind your own bobbins while sewing to color match your embroidery!
Durable Construction Die-cast metal frame, heavy-duty drive system for continuous operation and long machine life - proven after years in the field. Click image to view a closeup.	Recognize any 3rd party hoop that fits on the machine with custom hoop maps! Visualize and adjust design position and fit onscreen just as you can with Happy brand hoops. Click image to read more.

Video Gallery

Introduction to Voyager 2
Demonstration video all about Happy's Voyager 12-needle embroidery machine

Voyager 2's Touch Screen In Action
Watch a video on Voyager 2's new touch screen control panel. Easy to use!

Cap Sewing Setup on Voyager 2
See how easy it is to embroider on finished ballcaps with Voyager

Voyager 2 With a Hooptech Clamp
An example of Voyager's sewing flexiibility with this popular add-on.

Voyager and your Embroidery Business:
Compact-home-friendly, Voyager is also built for commercial production and can drive your embroidery business! Click to learn more.

Projects for your HAPPY Embroidery Machine
Browse these DIY projects to see what you can acccomplish with a Happy Embroidery Machine!

Help and Support for Voyager:
If you need help with your Voyager embroidery machine, click on the image on the left..

Financing Options for Happy Voyager2
Find out about financing options for purchasing new Happy Voyager2 embroidery machines.

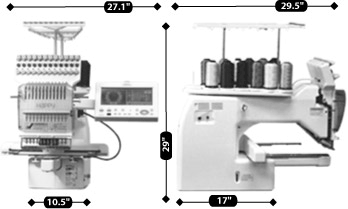

Key Measurements

Machine width: (base) 10.5", (with control panel) 27.1"
Machine height: 29"; Machine length/depth: 29.5"
Machine weight: 88lbs assembled; 125lbs in box.

Sewing Performance

Continuous sewing field: normal (tubular) - 12.5" x 12.5"; cap field 2.7"h x 11.4"w
Sewing Speed: normal (tubular) - 1000spm; cap sewing speed 750spm
Duty Cycle: 8 hours+ continuous operation

Happy Voyager Embroidery Machine diagram

Voyager 2 Improvements

Color touch screen with cleaner layout; easier to learn than ever
Refininements to mechanical and electronics
Fast color change and other movements to reduce project time
Organize designs in custom folders on-screen
Virtual keyboard makes in-machine lettering a snap
Additional auto-maintenance and reporting features
Improved networking allow browsing of remote PC's
Compatibility with 64-bit Windows including Windows 7 & 8
More local purchase options through national dealer network

happy voyager 2 with hooptech clamping systems

Voyager 2 with clamping system,
embroidering on canvas laptop bag
Amazing flexibility!

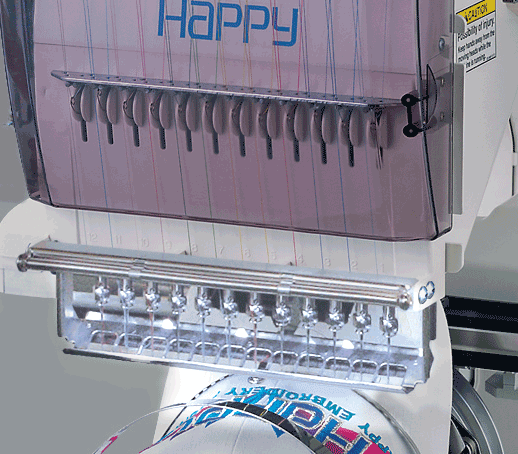

Happy Voyager embroidery machine LED illumination lights

Well lit sewing area with multiple LEDs

Questions? Interested in purchasing this embroidery machine? CLICK HERE to contact us!

2013 model shown on this page. To learn about the 2012/2011 model Voyager with standard color LCD control panel, CLICK HERE
